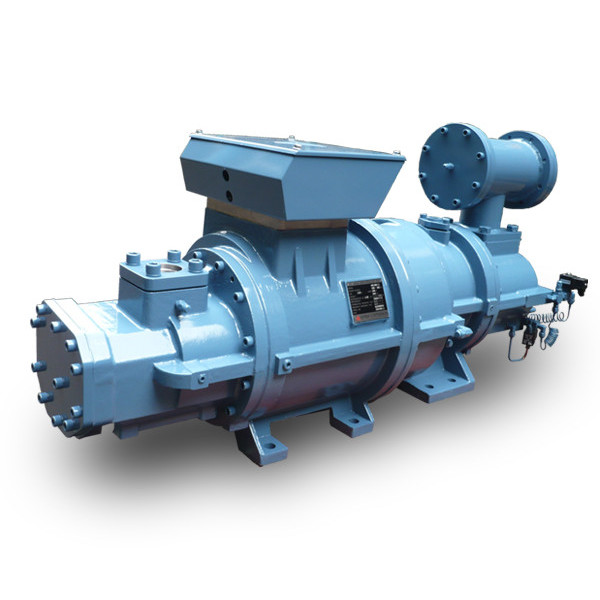

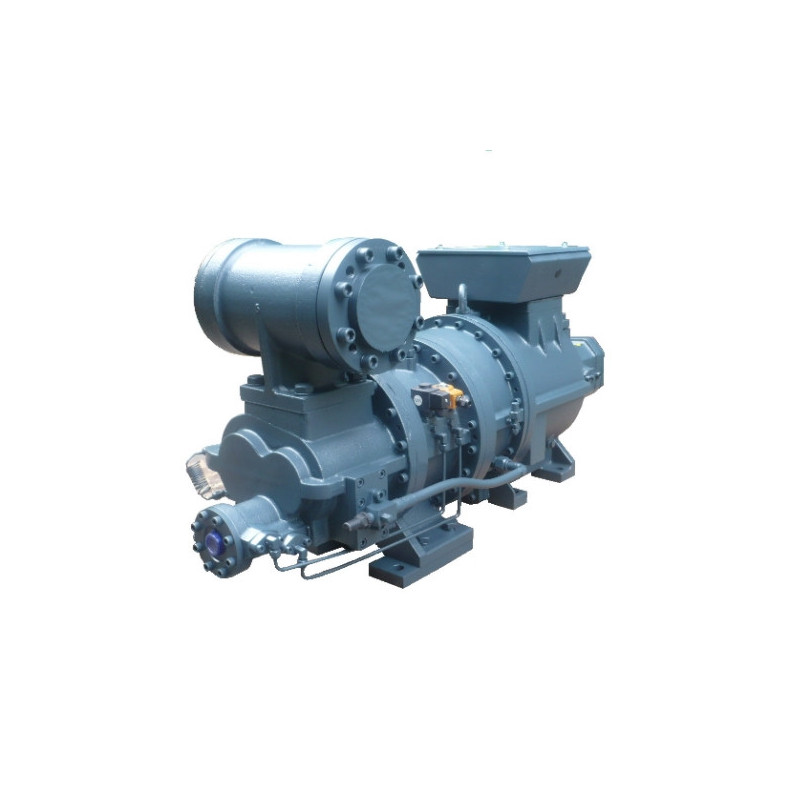

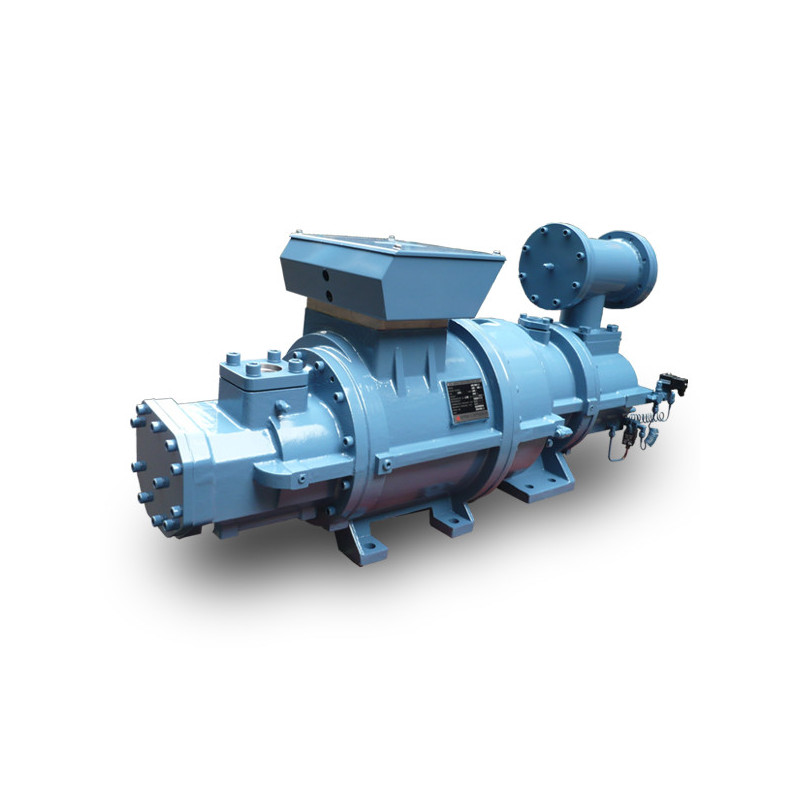

SDL Series
SDL Series
New product
The SRT two-stage screw heat pump is environmentally-friendly, exceptionally efficient, and highly precise, featuring a built-in eco-friendly R134a refrigerant.
After years of practice and working with clients, our compressors have acquired numerous awards and certifications from various domestic and international institutes, including the ISO9001, ISO14000, OHSAS-18000, ISO1461-1, TOSHMS verification (Taiwan), Symbol of Excellence Award (Taiwan), 2010 Industry Innovation Achievement Award (Taiwan), and many more.
The SRT314HA to SRT413HA high temperature pump models operate at a capacity between 200 and 500kW (uniaxial pressure) with a heat capacity between 120 and 300kW (uniaxial pressure), and produce a discharge volume of approximately 267/172 to 636/300m3/hr. The SRT218 to SRT415 are low-temperature freezers that feature different refrigerant options. The R22 refrigerant has an evaporation temperature from -25℃ to -60℃; the R404A and R507 refrigerants have evaporation temperatures from -25℃ to -65℃), COP up to 1.68 (Evp. -35℃), and discharge volumes of about 144/60 – 759/300m3/hr.
FEATURES

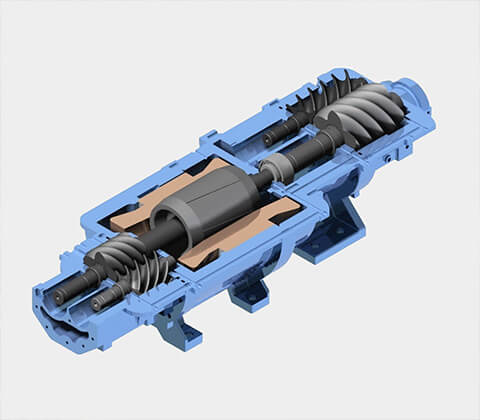

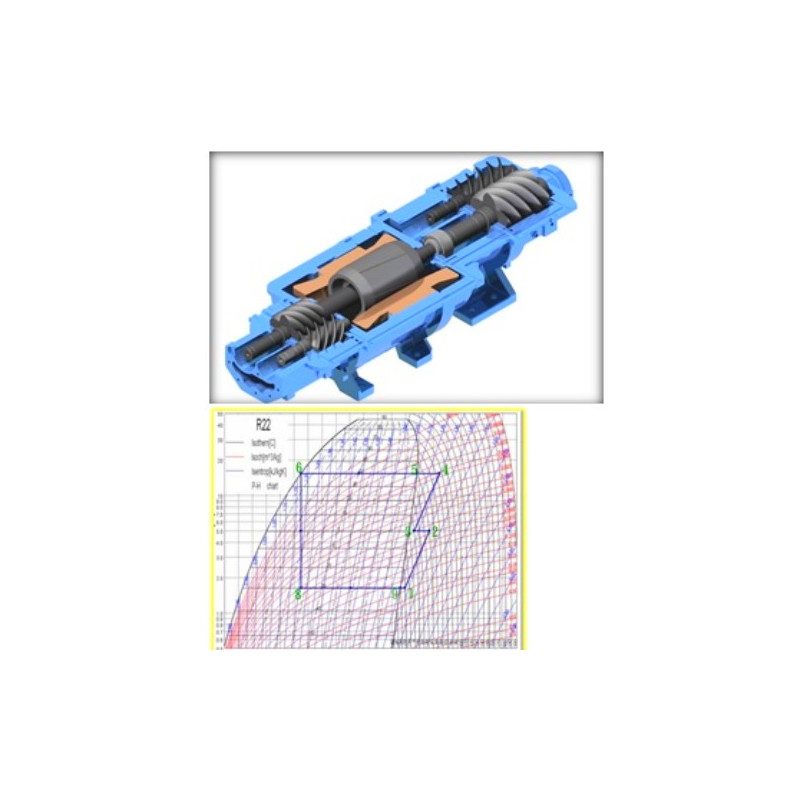

Specially designed for pressure differential refrigeration and application to heat pumps. The compound two-stage screw compressor is equipped with a pair of rotors, one on high pressure and one on low pressure, for a synchronous direct drive of the electrical machinery. It is also built with highly precise curved-tooth gear coupling to achieve the best state of balance and to make the entire desi
The series adopts the eco-friendly R134a refrigerant and is an exceptionally energy-efficient two-stage screw heat pump. The heat pump can be operated with boilers or simply used as a boiler, saving 70% of power consumption and reducing at least 40% of the carbon dioxide emissions.
This product has a wide operating range, produces 85℃ hot water, and can be applied to various high-temperature hot water units. When running between -30℃ and -65℃, its efficiency is 30% greater than single-stage screw refrigerant compressors and 20% greater than low-temperature two-stage reciprocating compressors.

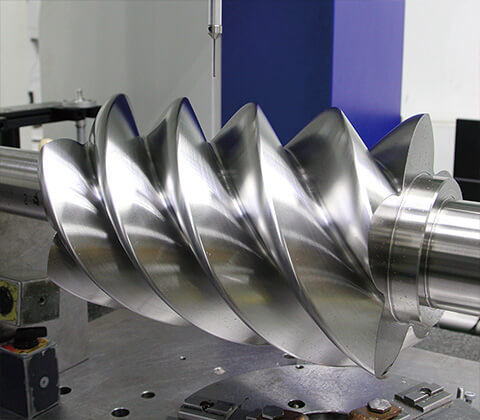

It possesses a highly reliable and multi-nationally patented cooling control system as well as a patented gear tooth for precision processing. It performs with high COP value, low vibration, and low noise.
