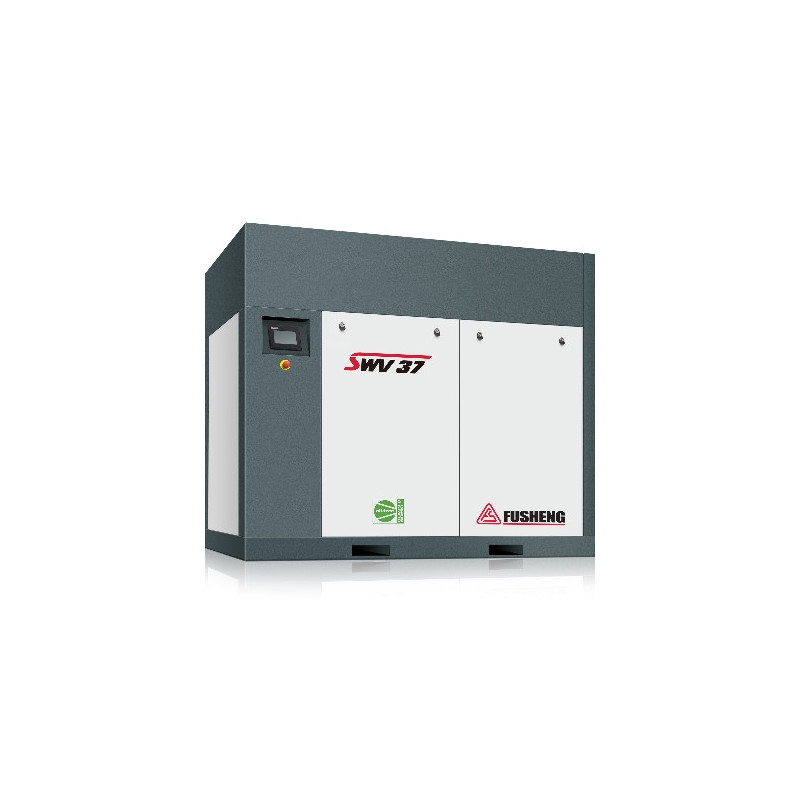

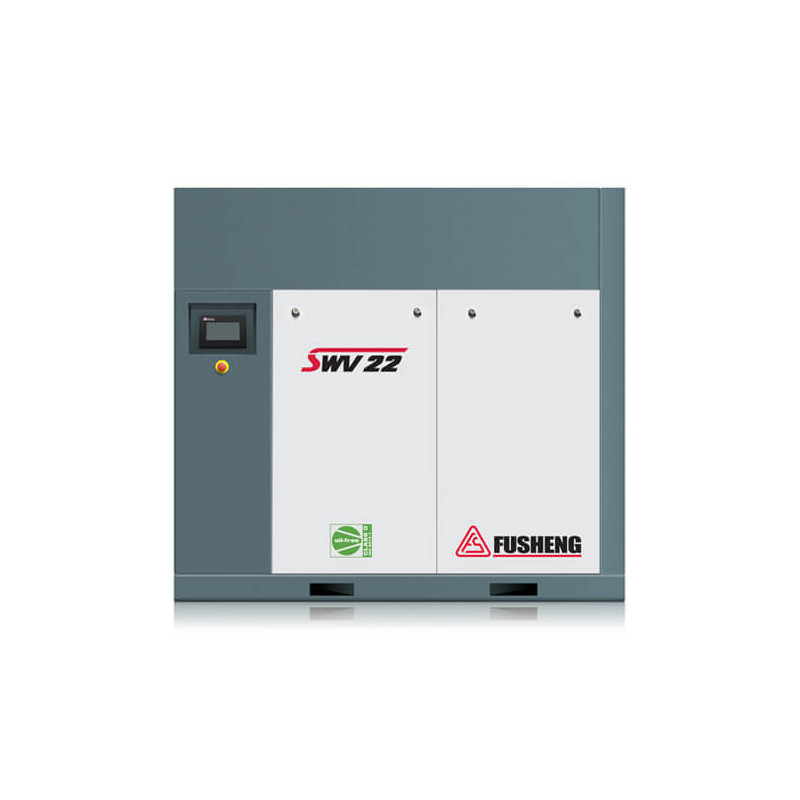

SWV Series
SWV Series
New product
The injected water of the SWV-series functions as both a sealant and a coolant. It reduces leakage between the rotors and the housing, which can improve a compressor’s efficiency by 15% when compared to a dry screw compressor.
Injected water also mixes with the compressed air to efficiently cool down and dissipate the heat generated in the compression process, thus allowing an almost isothermal compression.
The SWV series airends were designed to provide good air quality, perfect performance, and high reliability. It generates 100% oil-free compressed air for all applications where clean air is crucial in producing products of the highest quality.
FEATURES

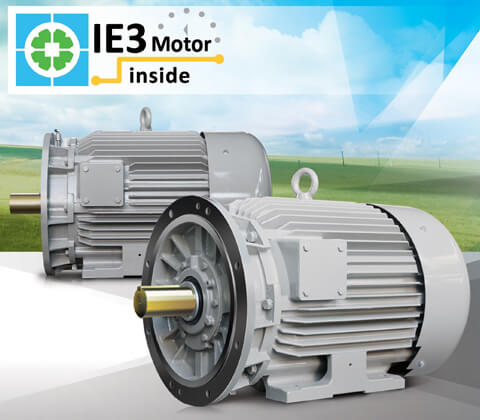

Uses a high efficiency variable-frequency Drive (VFD) and a VFD compatible moto
VSD-based controller: with the use of microprocessor intelligent control, the c
Low maintenance cost: only a small amount of component parts and consumable mat
Environmental Protection: Surfaces are coated with a special alloy to prevent a
Isothermal compression: Optimum efficiency is achieved in isothermal compressio
Reliable sealing system: the airends of the SWV series are supported by precise
Dry Air: Low viscosity injected water is easily separated from compressed air.
Low Noise: With injected water, the airend can be run at a much lower speed in
| Working Pressure | 0.7~0.9 MPa |
| Air Delivery | 2.0 ~ 20 m3/min |
| Motor Power | 15~120 kW |
